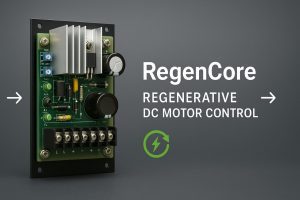

RegenCore Series – SCR DC Motor Drives 4 Quadrant
RegenCore is a reliable regenerative DC motor drive with SCR-based 4-quadrant control. Designed for precise speed and braking, it suits conveyor systems, automation lines, and any application requiring bidirectional motion with energy recovery.
Overview
RegenCore Series offers robust 4-Quadrant DC Motor Drive control with regenerative energy feedback and rugged SCR architecture. It supports 115/230 VAC input and 0–90/180 VDC output for smooth and efficient operation.
🔧 Key Features
- 🔄 4-Quadrant Operation
Full motoring and braking in both directions for complete control - 🔋 Regenerative Braking
SCR-based energy feedback system returns power to the source efficiently - ⚡ Wide Voltage Range
Input: 115 / 230 VAC | Output: 0–90 / 0–180 VDC - 🔧 Flexible Field Supply Options
Field supply configurations: 50, 100 / 100, 200 VDC - 🎚️ Remote Control Signal Support
Compatible with ±250 VDC, 4–20 mA, and other analog signals - 🎯 Tachogenerator Feedback (Optional)
Enables closed-loop precision control where required - 🛡️ Electrical Isolation & RoHS Compliance
Built to meet safety and environmental standards - 🏗️ Compact, Rugged Chassis
Ideal for industrial panel mounting and OEM integration
⚙️ Applications
- 🚚 Conveyor and material handling systems
- 🏗️ Vertical lifts, hoists, and cranes
- 🧪 Motor test benches and automation rigs
- 🔧 OEM machinery requiring efficient regenerative DC control
Explore more DC motor drives or contact Ameronics for your regenerative solution.
| Model | Field Voltage | Current | Braking Type | Reversing Type | Technology | Remote Signal Support | Feedback Type | Communication |
|---|---|---|---|---|---|---|---|---|
| 5A | 50, 100 / 100, 200 VDC | 5 Amps | Regenerative | Regenerative | SCR | ±250 VDC, 1–5 mA, 4–20 mA, 10–50 mA | Tachogenerator | No |
| 10A | 50, 100 / 100, 200 VDC | 10 Amps | Regenerative | Regenerative | SCR | ±250 VDC, 1–5 mA, 4–20 mA, 10–50 mA | Tachogenerator | No |
- Installation Guide – Coming Soon
- CAD Drawing – Available on request
- OEM Customization – Control options, labeling, and more
