Revoxa Series – SCR Enclosed DC Motor Drives 4 Quadrant

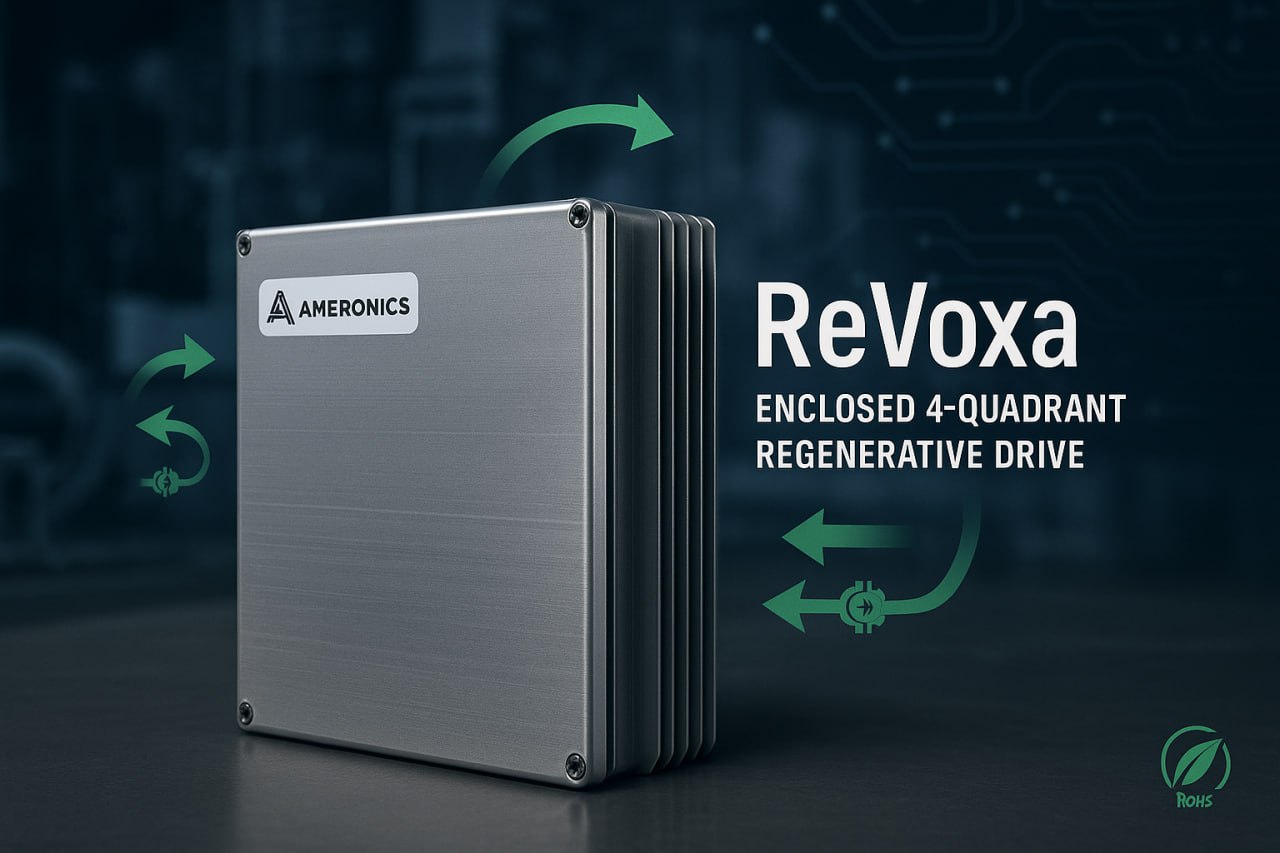

ReVoxa Regenerative DC Motor Drive is a rugged, enclosed 4-quadrant SCR drive built for high-efficiency industrial motor control. Designed for energy recovery, bidirectional motion, and precise speed regulation, it’s ideal for automation systems, OEM machinery, and heavy-duty environments. Housed in an anodized aluminum enclosure and powered by the proven RegenCore platform, ReVoxa ensures reliable performance with analog input, tach feedback, and regenerative braking.
Overview
ReVoxa regenerative DC motor drive is a rugged, enclosed solution designed for high-efficiency industrial motor control. It provides full 4-quadrant operation — motoring and regenerative braking in both directions — ideal for systems requiring reliable and energy-efficient DC drive performance.
Powered by the RegenCore platform, this SCR-based motor controller comes in a precision-machined anodized aluminum enclosure to protect against dust, debris, and harsh conditions. It’s perfect for OEM installations and automation systems that demand durability and regenerative efficiency.
With analog signal support, tachogenerator input, and energy recovery capabilities, ReVoxa offers automation engineers and integrators a scalable, field-proven solution for modern industrial motor control.
🔧 Key Features
- ✅ 4-Quadrant Regenerative Operation
Motoring and braking in both forward and reverse with energy feedback to AC line - 🛡️ Rugged Aluminum Enclosure
Anodized and sealed for durability, corrosion resistance, and heat management - ⚡ Wide Voltage Compatibility
Accepts 115/230 VAC input, delivers stable output via SCR drive - 🔋 Energy Recovery
Reduces heat and saves energy by returning power during deceleration
- 📏 Multiple Current Options
Available in 5A and 10A models for system flexibility - 🧠 Remote Signal Integration
Supports ±250 VDC, 4–20 mA, and other analog inputs - 🎯 Tachogenerator Feedback
Closed-loop speed regulation for precision applications - 🔧 Compact Design
Easily mountable in control panels and OEM machinery - ♻️ RoHS Compliant
Built to meet modern environmental and safety standards - 🔌 Optional Fusing
Built-in safety features for industrial environments
Designed and built in the USA
⚙️ Recommended Applications
- Industrial conveyor systems with frequent braking
- Vertical lifts and material hoists
- Motor test benches and actuator labs
- Energy-sensitive packaging automation
- Bidirectional DC motion control systems
- OEM machinery requiring energy recovery and durability
- More DC Motor Drive Solutions
| Model | Input Voltage | Output Voltage | Field Voltage | Current | Braking/ Reversing Type | Technology | Remote Signal Support | Feedback Type | Communication | Enclosure |
|---|---|---|---|---|---|---|---|---|---|---|
| 5A | 115 / 230 VAC | 0 - 90 / 0 - 180 VDC | 50, 100 / 100, 200 VDC | 5 Amp | Regenerative | SCR | ±250 VDC, 1–5 mA, 4–20 mA, 10–50 mA | Tachogenerator | No | NEMA 1 |
| 10A | 115 / 230 VAC | 0 - 90 / 0 - 180 VDC | 50, 100 / 100, 200 VDC | 10 Amp | Regenerative | SCR | ±250 VDC, 1–5 mA, 4–20 mA, 10–50 mA | Tachogenerator | No | NEMA 1 |
- Installation Guide – Coming Soon
- CAD Drawing – Available on request
- OEM Customization – Control options, labeling, and more
