Regencore 4Q DC Drive
DC Drive Controller · Regenerative · 4-Quadrant · Chassis

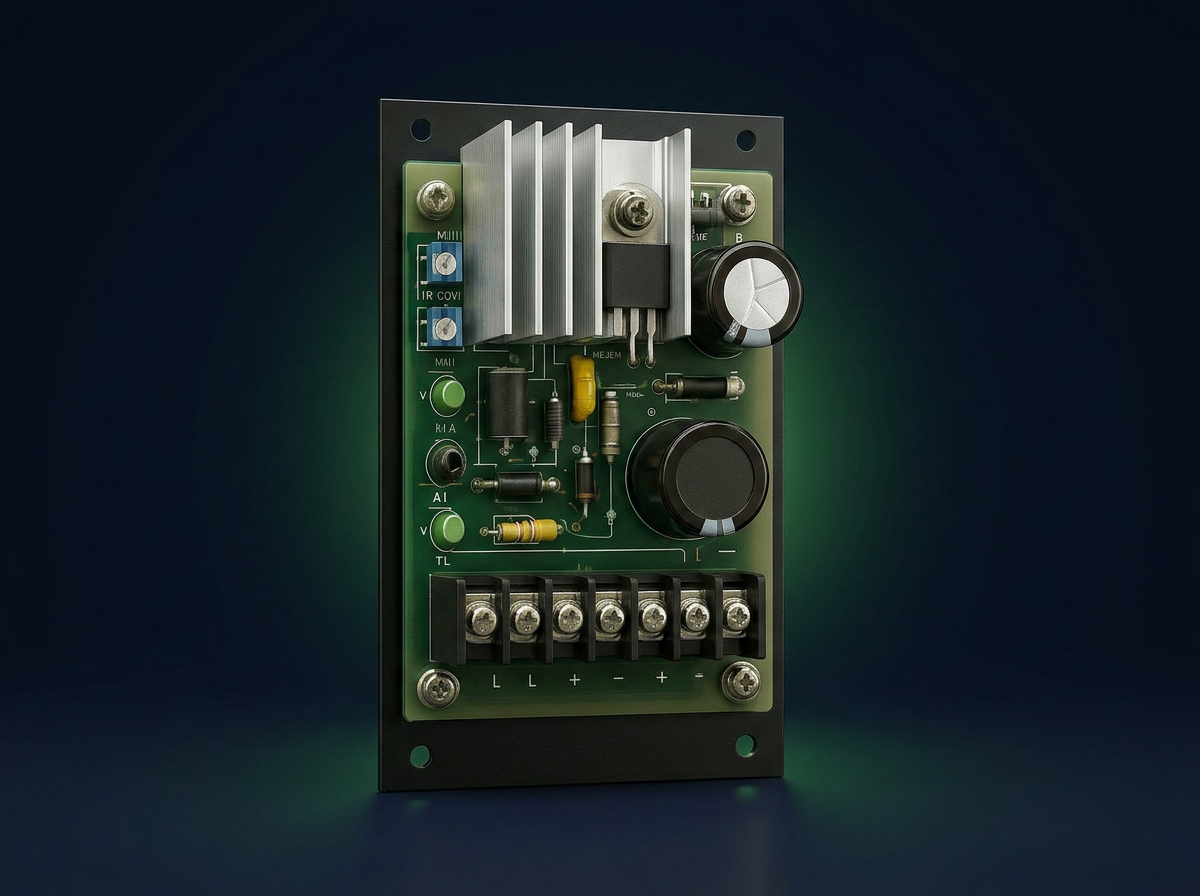

Regencore 4Q DC Drive

Open-Chassis Regenerative SCR DC Drive

Reliable regenerative DC motor drive with SCR-based 4-quadrant control. Designed for precise speed and braking, it suits conveyor systems, automation lines, and any application requiring bidirectional motion with energy recovery.

The Regencore Series is a robust 4-Quadrant DC motor drive with SCR-based regenerative energy feedback, packaged on a compact open chassis for panel mounting and OEM integration. It delivers full motoring and braking in both directions with smooth, efficient regeneration of braking energy back to the AC line. With 115 / 230 VAC input and 0–90 / 0–180 VDC armature output, flexible field-supply options (50, 100 / 100, 200 VDC), broad remote-signal compatibility (±250 VDC, 1–5 mA, 4–20 mA, 10–50 mA) and optional tachogenerator feedback for closed-loop precision, the Regencore is built for conveyors, vertical lifts, hoists, cranes, motor test benches, and OEM machinery requiring efficient regenerative DC control. Electrical isolation and RoHS compliance are included as standard.

  • Full 4-Quadrant operation — motoring & braking, both directions
  • SCR-based regenerative braking with energy returned to source
  • Wide voltage range — 115 / 230 VAC in, 0–90 / 0–180 VDC out
  • Flexible field supply: 50, 100 / 100, 200 VDC
  • Remote signal support: ±250 VDC, 4–20 mA and other analog
  • Optional tachogenerator feedback for closed-loop precision
  • Electrical isolation · RoHS compliant
  • Compact, rugged open chassis for panel & OEM integration
Request a quote
Technical Specifications REGENCORE 4Q DC DRIVE · DATASHEET
AC Input
115 / 230 VAC, single-phase
DC Output (Armature)
0–90 / 0–180 V DC
Current Range
5 – 10 Amps
Field Supply
50, 100 / 100, 200 VDC
Technology
SCR phase-controlled
Operation
4-Quadrant (motor + brake, both directions)
Energy Recovery
Regenerative to AC line
Remote Signals
±250 VDC, 1–5 mA, 4–20 mA, 10–50 mA
Feedback
Tachogenerator (optional)
Communication
None
Isolation
Isolated
Enclosure
Open chassis
Compliance
RoHS compliant
Typical Applications
  • Conveyor & material handling systems
  • Vertical lifts, hoists & cranes
  • Motor test benches & automation rigs
  • OEM machinery requiring regenerative DC control
Model Lineup REGENCORE 4Q DC DRIVE · ORDERING GUIDE
Model Current Field Voltage Braking Reversing Tech Remote Signal Feedback Comms Isolation Mode Enclosure
5A 5 A 50, 100 / 100, 200 VDC Regenerative Regenerative SCR ±250 VDC, 1–5 mA, 4–20 mA, 10–50 mA Tachogenerator No Yes Speed & Torque Chassis
10A 10 A 50, 100 / 100, 200 VDC Regenerative Regenerative SCR ±250 VDC, 1–5 mA, 4–20 mA, 10–50 mA Tachogenerator No Yes Speed & Torque Chassis
