REDVOLT 1P DC MOTOR CONTROLLER

The RedVolt 1P is a high-efficiency, compact SCR-based DC motor controller built for industrial automation applications. Designed with ruggedness and simplicity in mind, it’s ideal for conveyor systems, robotics, and OEM machines needing a reliable DC motor drive controller that delivers consistent performance.

Key Features

  • Soft Start and IR Compensation for smooth motor operation
  • Integrated Dynamic Braking (preset) and Current Limiting
  • Dual Input Voltage: 115V or 230V AC
  • Adjustable Speed & Acceleration via onboard trim pots
  • Flexible Wiring: Terminal Block or Quick Connect
  • Compact Enclosure: Rugged industrial design
  • Built-in Fuse and Protection Circuits
  • Advanced Heatsink Cooling for thermal management
  • RoHS Compliant – ready for global markets

Applications

  • Assembly & Robotics systems
  • Packaging machines and automation
  • Treadmills and fitness equipment
  • Feeder & conveyor systems
  • Testing stations and lab automation

Choosing the right DC motor drive controller is critical to maintaining reliability and control in your industrial setup. The RedVolt 1P ensures seamless operation, minimal downtime, and user-friendly configuration. Its compact size makes it ideal for integration into OEM designs and automation panels. With Ameronics’ commitment to innovation and quality, this controller meets the demands of both new and retrofit systems across global markets.

To learn more about best practices in industrial motor control, visit
Motion Control Online.

Explore full specs of RedVolt 1P at
www.ameronics.com.

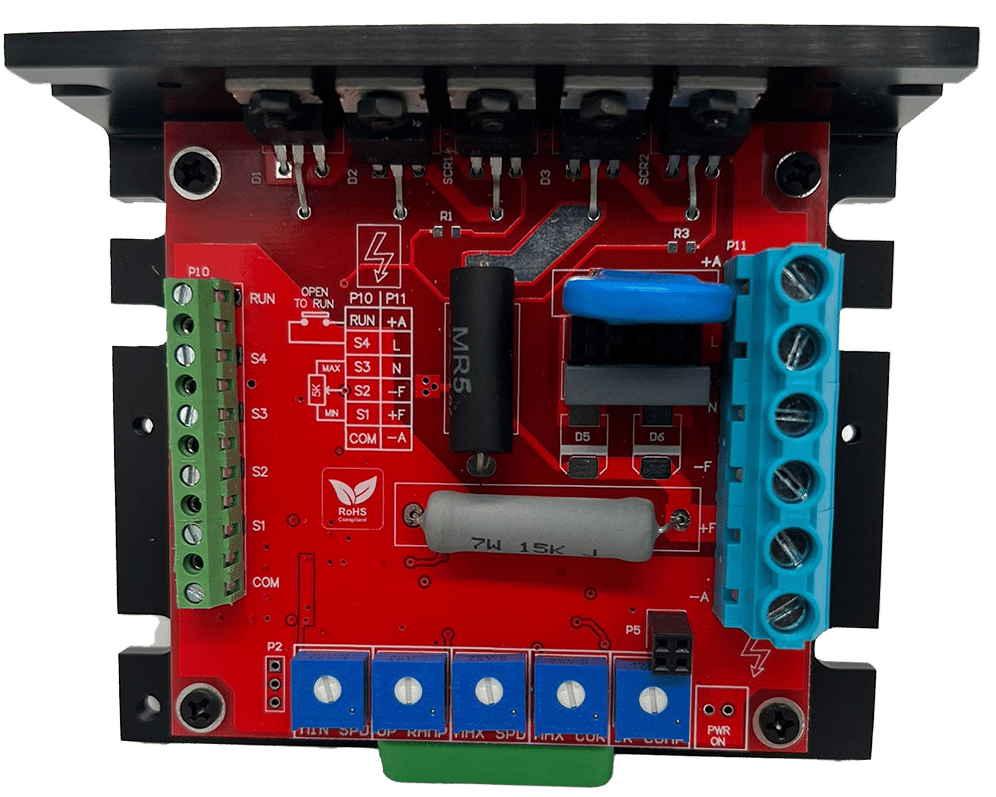

DC motor controller RedVolt 1P - main image

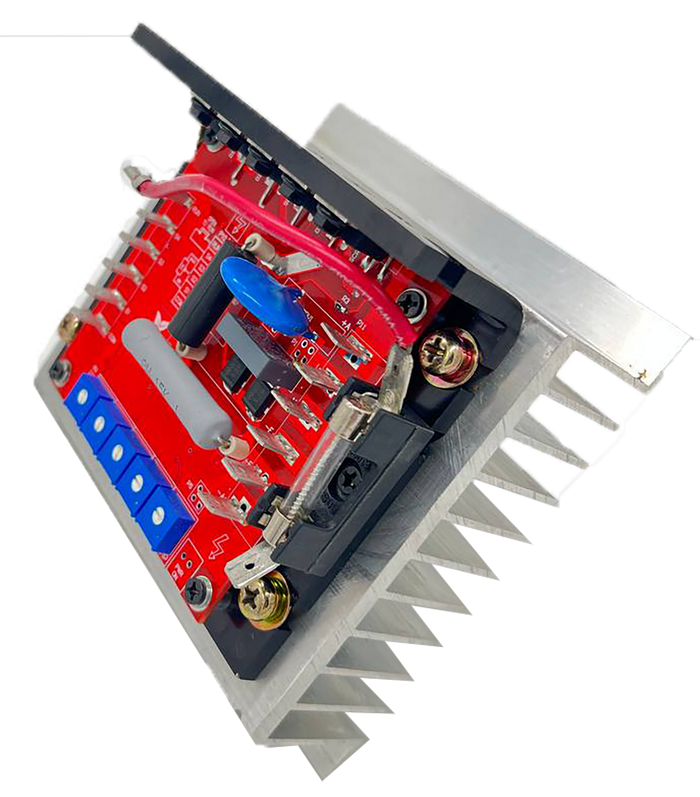

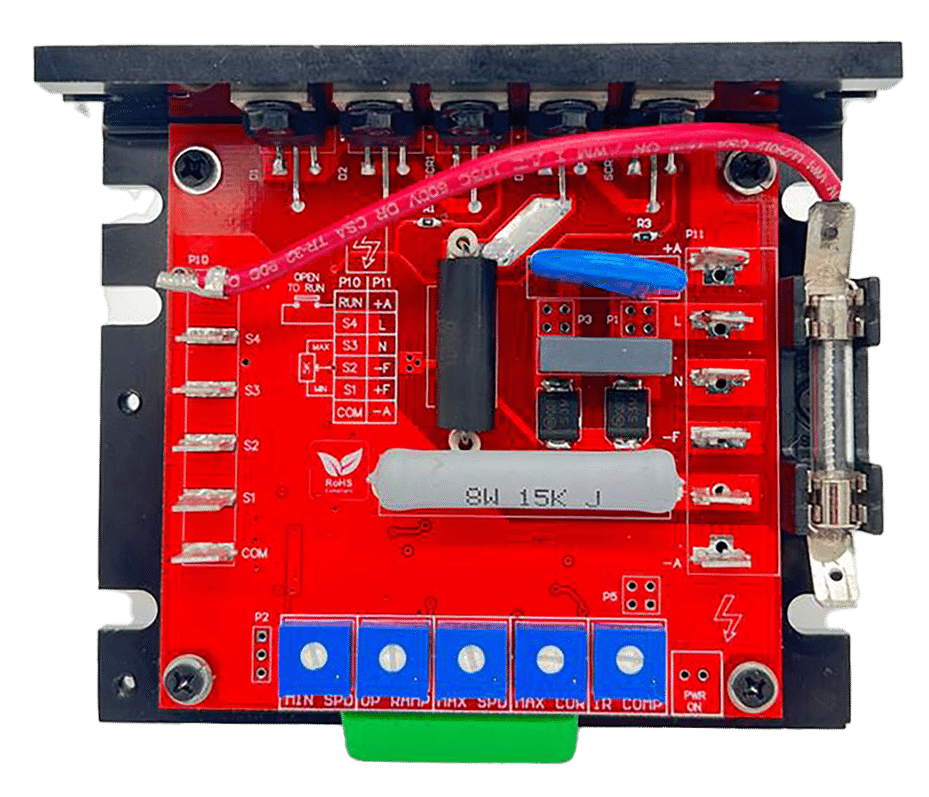

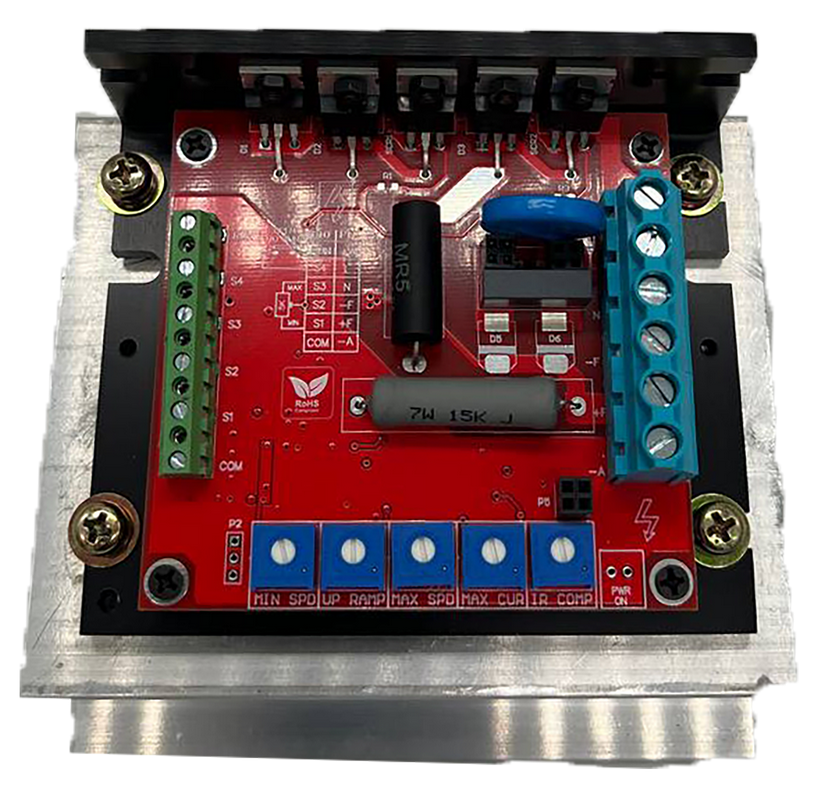

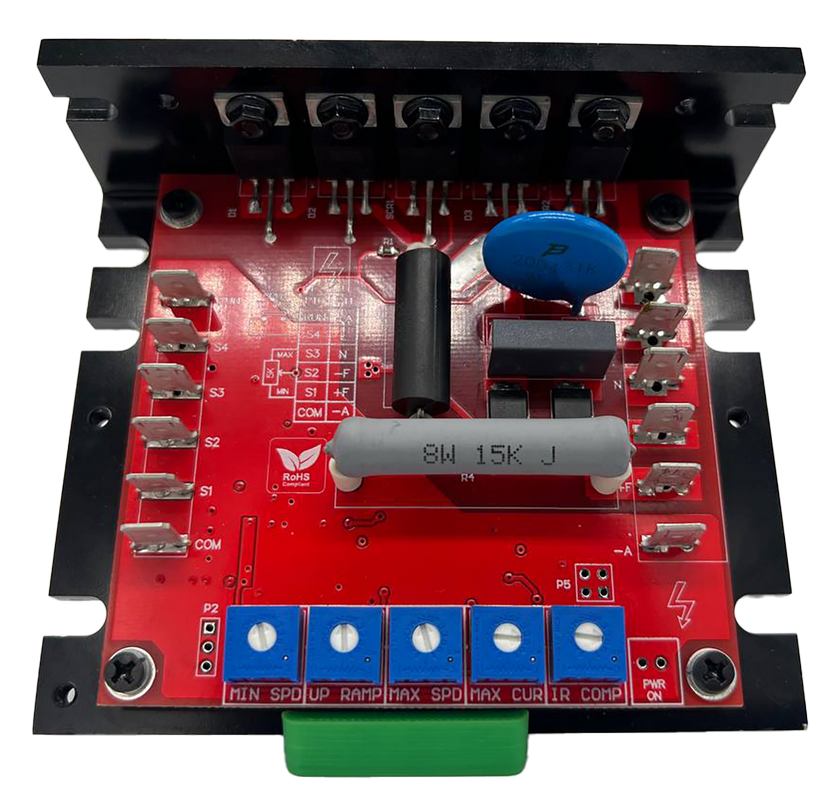

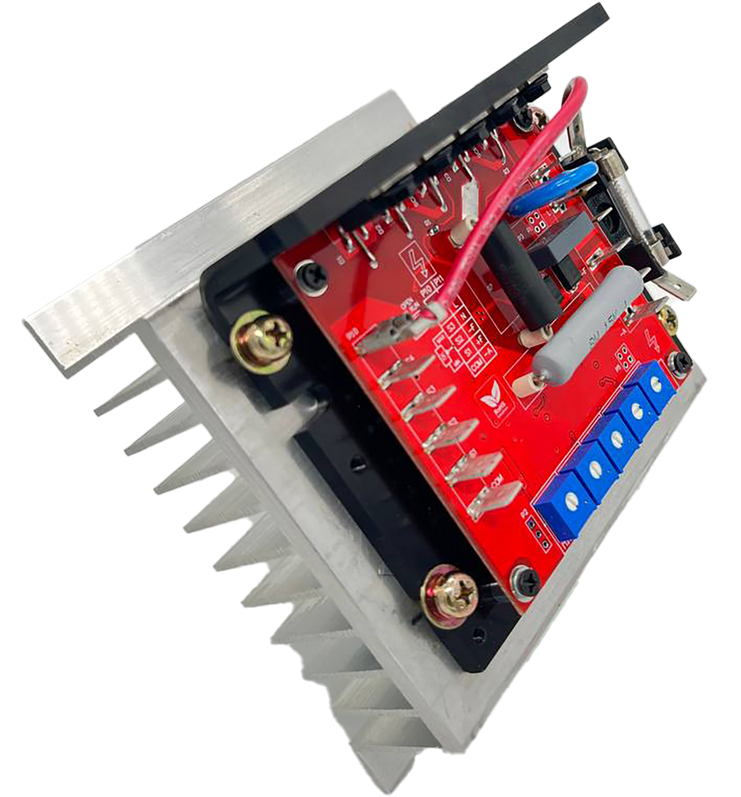

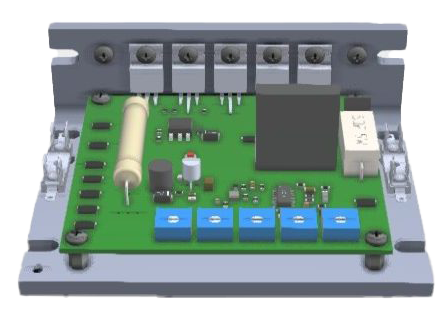

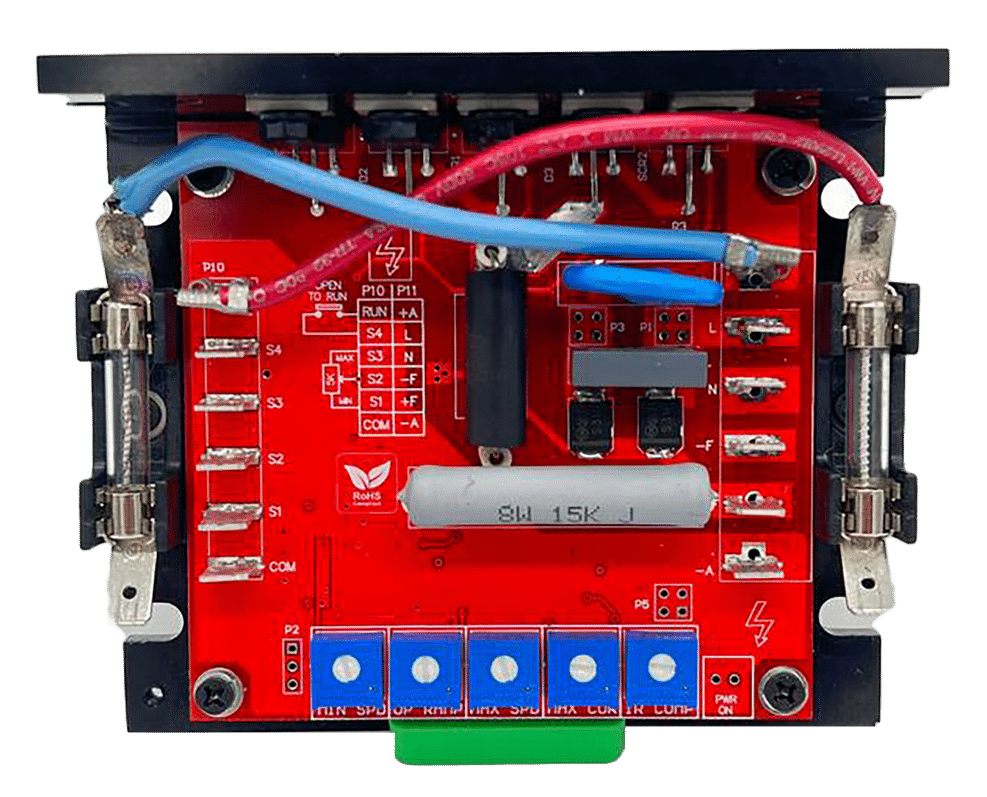

RedVolt 1P - top view photo RedVolt 1P - front angle view RedVolt 1P - close-up detail RedVolt 1P - controller ports view RedVolt 1P - new model image RedVolt 1P - angled motor controller RedVolt 1P - heatsink cooling detail RedVolt 1P - interactive 3D viewer preview
Model NumberInput VolOutput VolCurrent90VDC 180VDC TechnologyCommunicationIsolationOperation ModeEnclosurePrice
1P-1.5A115 / 230 VAC0–100/0–200 VDC1.5 Amps1/8 HP1/4 HPSCRNoNoTACO & ArmatureChassis$250.00
1P-3A115 / 230 VAC0–100/0–200 VDC3 Amps1/3 HP2/3 HPSCRNoNoTACO & ArmatureChassis$350.00
1P-5A115/ 230 VAC 0–100/0–200 VDC5 Amps1/2 HP1 HPSCRNoNoTACO & ArmatureChassis$450.00
1P-10A115/ 230 VAC 0–100/0–200 VDC10 Amps1 HP2 HPSCRNoNoTACO & ArmatureChassis$500.00
1P-15A115 / 230 VAC0–100/0–200 VDC15 Amps1.5 HP3 HPSCRNoNoTACO & ArmatureChassis$500.00
*Note: Models 1P-10A and 1P-15A include a secondary extruded heatsink for enhanced thermal management in higher load applications.
